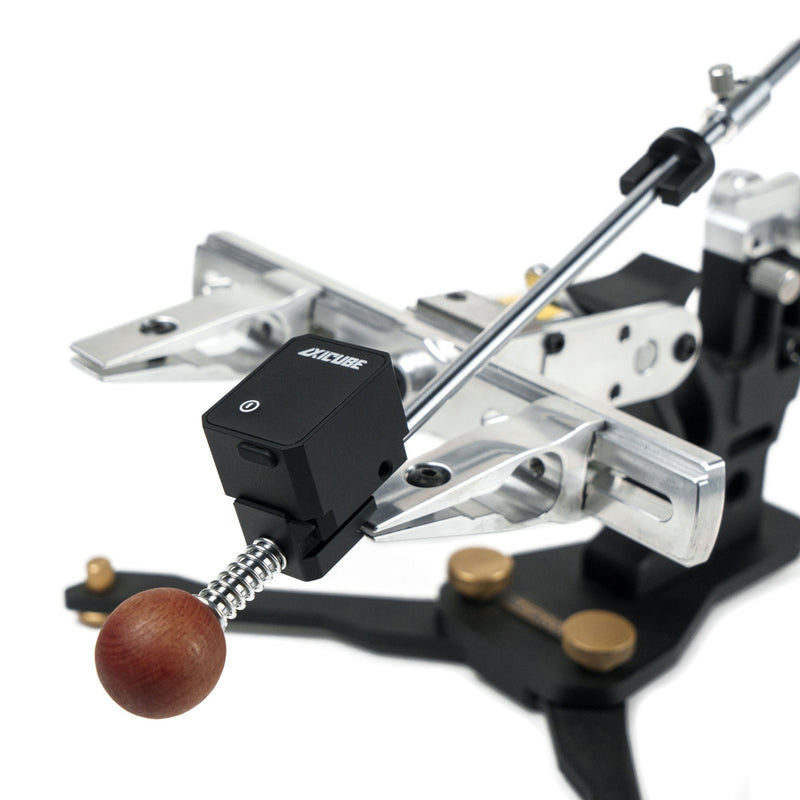

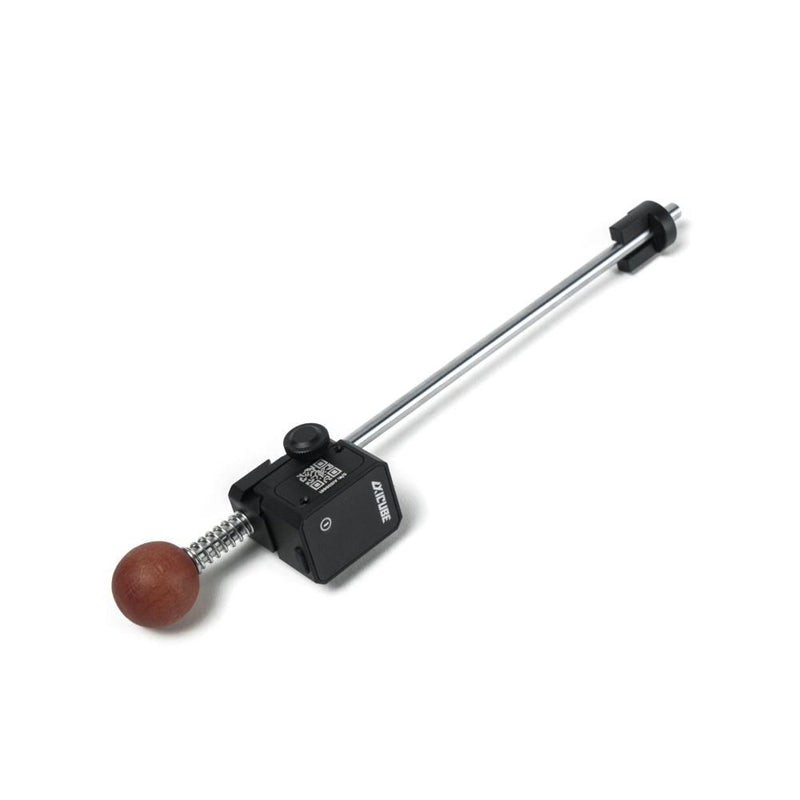

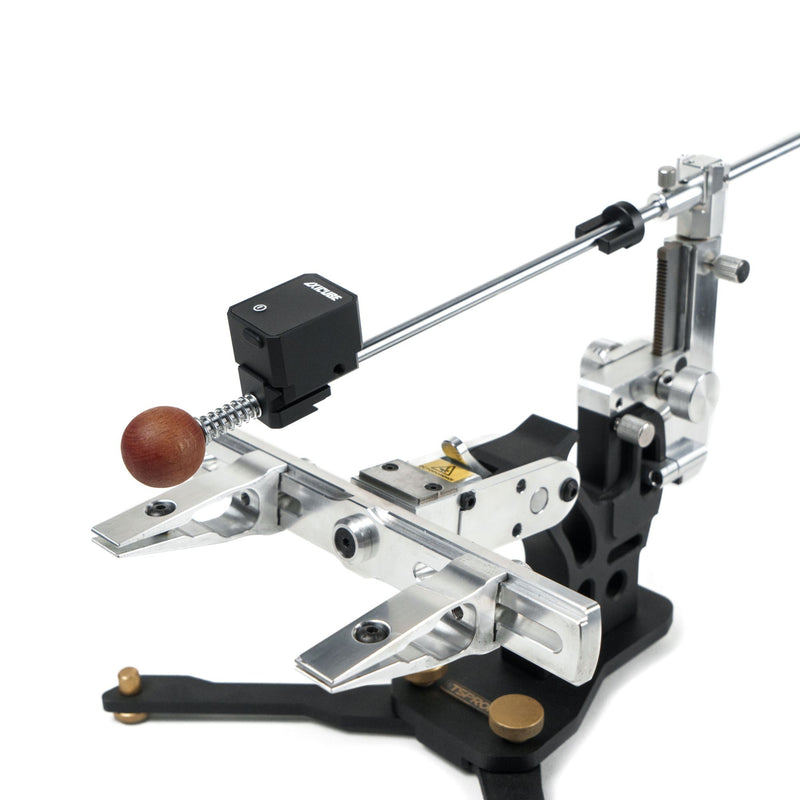

TSPROF Abrasive Holder with Detachable Axicube Shift Angle Gauge, 6 mm, Matte

A TSPROF abrasive holder featuring a removable Axicube Shift electronic angle finder with a Picatinny rail mount for a 6 mm guide rod, designed for the TSPROF Pioneer sharpening system.

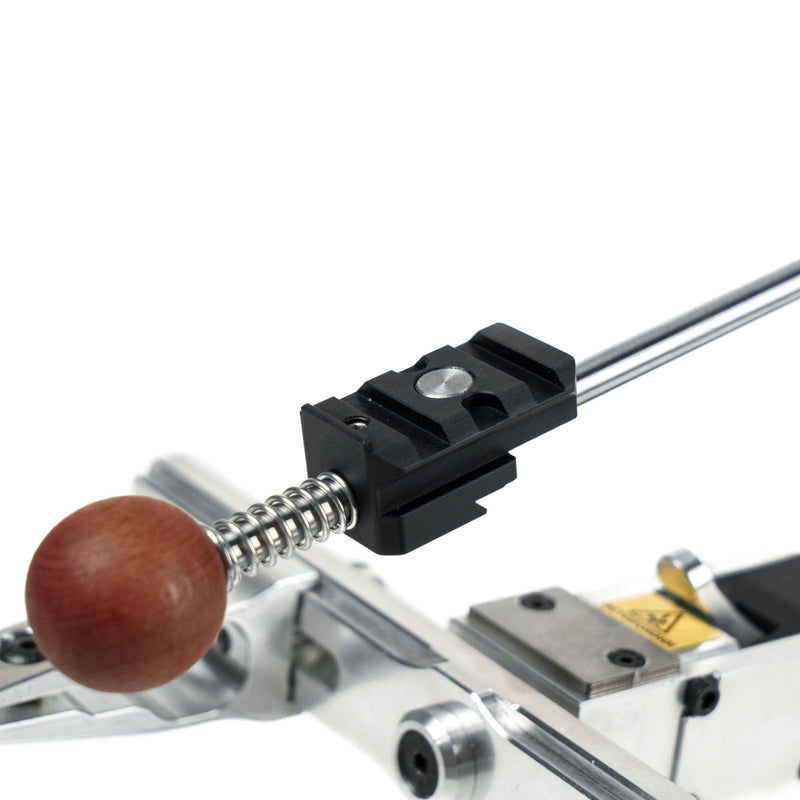

Now you can work either with the angle finder installed—securely fixed to the holder using magnets and a mounting screw—or without it, reducing the load on the abrasive stone during the sharpening process. The screw for securing the angle finder can be installed on either the left or the right side.

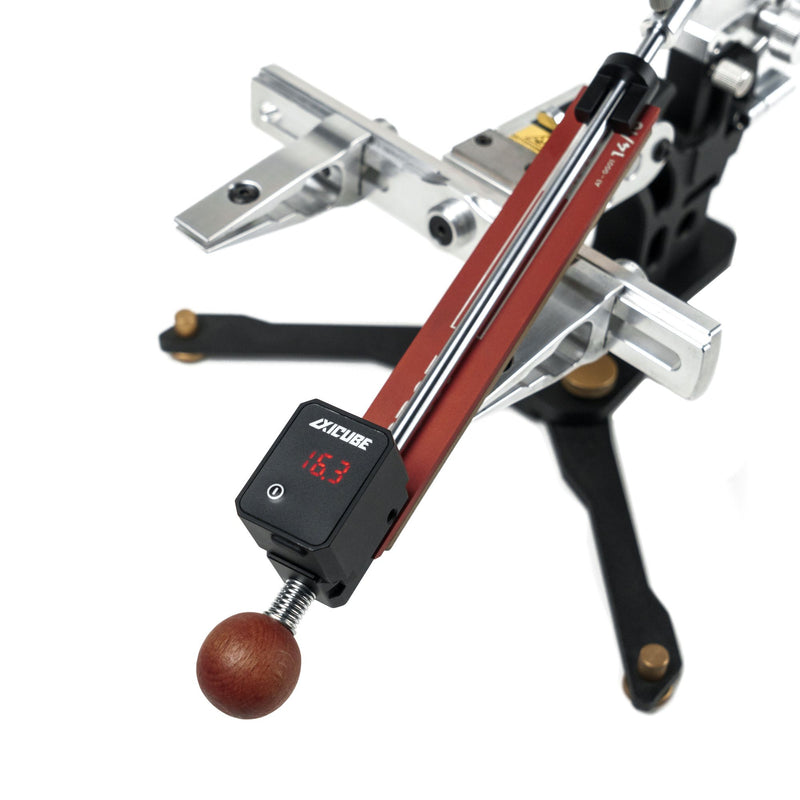

The Axicube Shift electronic angle finder is mounted on the abrasive holder and displays the set sharpening angle with an accuracy of up to 0.1°. The Axicube Shift helps you monitor the sharpening angle in real time and track any changes, for instance, when changing abrasives. Readings are easily visible on the bright display under any lighting conditions. The angle finder is vibration-resistant and housed in a durable aerospace-grade aluminum body with a matte black anodized finish.

The Axicube Shift is equipped with a removable lithium-polymer (Li-Pol) battery. A USB Type-C port is used for charging the device. A single battery charge provides up to 24 hours of continuous operation, and the angle finder will indicate the need to recharge by displaying a "Lo." message upon startup. Charging takes 15–20 minutes at a current of up to 0.5 A and a voltage of 5 V. For uninterrupted operation, the device requires monthly charging.

Attention! This angle finder is compatible with the TSPROF Pioneer and other sharpening systems where the sharpening angle is set by tilting the abrasive stone relative to a stationary base. Because the measuring instrument calibrates relative to a fixed plane, the Axicube Shift is incompatible with devices like the TSPROF Kadet, Blitz, and other sharpening systems where the angle is determined by tilting the blade relative to a movable abrasive holder.

Important! Charge the angle finder upon receipt. Do not allow it to discharge completely. Monthly charging is recommended for uninterrupted operation.

It is recommended to store the angle finder at a temperature not exceeding +27°C. Axicube is a patented invention. Patent No. 2768504. Axicube® is a registered trademark.

Package Contents:

• TSPROF Abrasive Holder with removable Axicube Shift electronic angle finder – 1 pc.

• Calibration prism – 1 pc.

• USB Type-C cable – 1 pc.

Dimensions:

• Length of the holder (excluding ball handle): 228 mm

• Length of the holder (including ball handle): 242 mm

Angle Finder Specifications:

Additional Notes:

• Incompatible with systems: TSPROF Kadet, Blitz.

• The product is not intended for use with the "TSPROF Universal small table" clamp.

• Proper operation of the product with other sharpening devices is not guaranteed.
